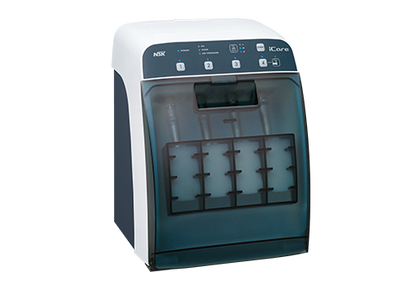

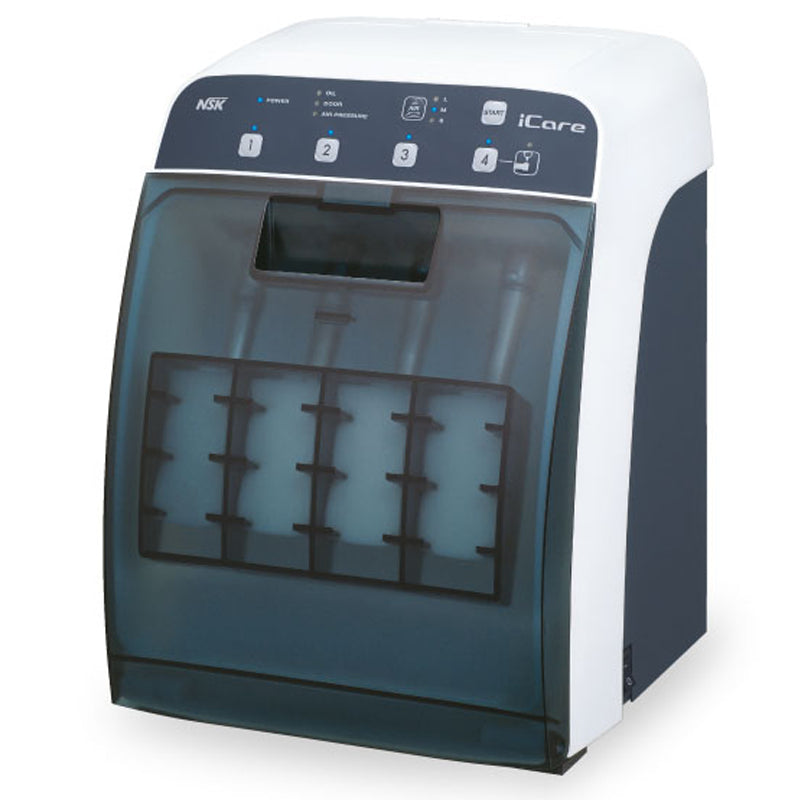

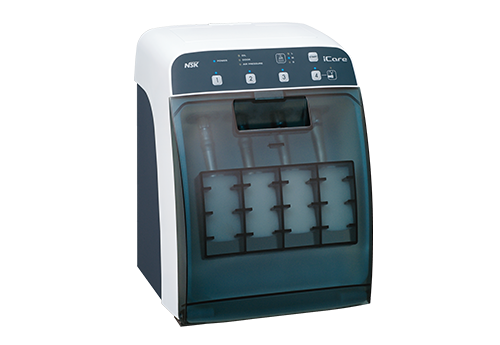

NSK
iCare
iCare
Automatically Lubricates
Technology & Function
-
Stylish & Compact
In the pursuing ultimate ease of use, NSK has given iCare the power to perform automatic maintenance for up to four handpieces at once.
iCare is also designed to be simple to set up and space efficient, you can install it virtually anywhere. -
Easy to Clean
iCare’s front door can be completely removed to allow fast, easy cleaning of the system.
-
Big Solution Tank
iCare’s big solution tank has a capacity of 1.2 liters, allowing you to pour in a full one-liter bottle of maintenance solution at once, reducing the necessity for frequent refilling.
The enclosed nozzle enables clean and easy refills. -
Handpiece Head Filter
Handpiece Head Filter is made to absorb any spray mist generated, which prevents mist leaks.
-
Purging Select Mode
After lubrication, you can select from appropriate modes offering different purge lengths.
-
iCare Maintenance Oil
The specially formulated maintenance oil provides for the highest levels of lubricating of handpieces.
iCare
Specifications
- Power Supply
- AC 100-240 V 50/60 Hz
- Air Pressure
- 0.5-0.6 MPa (5.0-6.0 kgf/cm2)
- Weight
- 6.5 kg (C2 Type / C3 Type)
- Dimension
- W 280 x D 240 x H 350 mm
- Solution Tank Capacity
- 1.2 L
* Connects only to Midwest 4-hole type
* Air piping is necessary (5.0-6.0 kgf/cm2)
Contents
- iCare Unit
- Power Cord
- Chuck Lubrication Nozzle
- Maintenance Oil for iCare (1 Litre)
- Mist Filter Set
- Oil Absorber Sheet
- Air Tube
Dual Standard Ports + Dual Rotation Ports
-
- Model:iCare C2 Type (120 V)
- Order Code:Y1002796
- Model:iCare C2 Type (230 V)
- Order Code:Y1002787
Single Standard Port + Triple Rotation Ports
-
- Model:iCare C3 Type (120 V)
- Order Code:Y1002797
- Model:iCare C3 Type (230 V)
- Order Code:Y1002788
